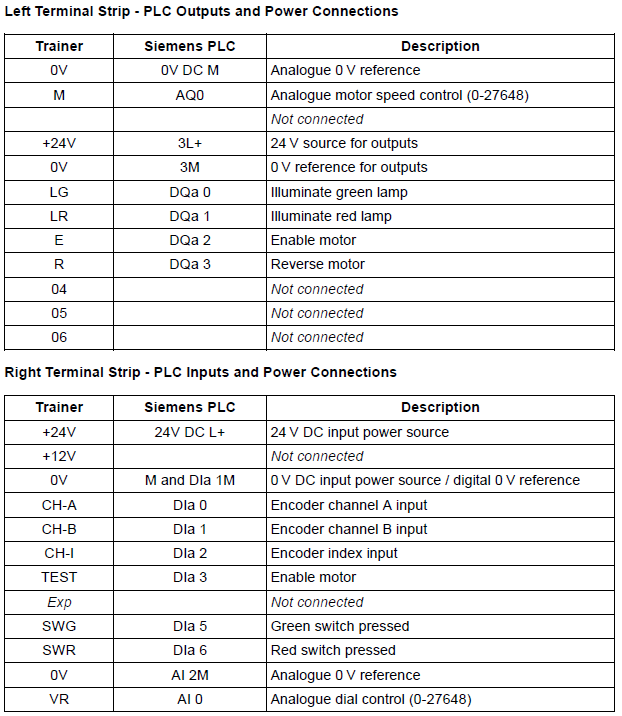

291-01 / 291-04 Siemens S7 1200 Connections


The supplied wire set has terminal connections on each end and different coloured wires to make the wiring easier.

Use a flat bladed screwdriver and ensure that power is switched off when connecting/disconnecting the unit.
