Software Requirements

MPLAB Software only required for PIC programming if unit is supplied with PIC Programming and Applications Card (320-61) Download Here or via Microchip MPLAB X website


Getting Started

Instructions and Specifications (supplied in printed format with trainer)


Accessory Kit Contents

Parts on Carriers

  • Capacitors
    • 470nF, 1µF, 10µF, 100µF (x2)
  • Diode
    • 1N4001, 1N4148
  • Thermistor
  • Microphone
  • Phototransistor
  • Lamp
  • Resistors
    • 47Ω, 100Ω, 1kΩ, 4.7kΩ (x2), 10kΩ (x2), 47kΩ, 100kΩ, 220kΩ, 470kΩ
  • Key Switch (x2)
  • Microswitch
  • Toggle Switch
  • 10kΩ Potentiometer
  • 100mH Inductor

Additional Components

  • Pre-programmed PIC
  • 555 Timer
  • Earphone
  • Shorting Links (x4)
  • Short Connection Leads (x17)
  • Long Connection Leads (x4)
  • 12V Power Supply


Useful Information

Power Supply : 12V 2A (PN: PG1780)

USB Connection : Used for firmware updates only. Not required for customer use.

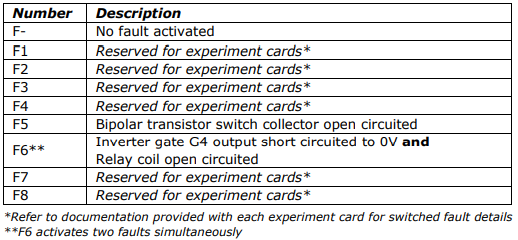

Switched Faults
