Software Requirements
No software is required for trainer however check if supplied as teaching set with Electronic Circuit Simulator.
Getting Started
Instructions and Specifications (supplied in printed format with trainer)
Accessory Kit Contents
Parts on Carriers
- Capacitors
- 1µF, 10µF, 100nF
- Diode
- Thermistor
- Microphone
- Phototransistor
- Lamp
- Resistors
- 100Ω, 1kΩ, 4.7kΩ (x2), 47kΩ, 100kΩ, 220kΩ
- Key Switch (x2)
- Microswitch
- Toggle Switch
- 10kΩ Potentiometer
Additional Accessories
- Pre-programmed PIC
- 555 Timer
- Earphone
- Shorting Links (x3)
- Connection Leads (x16)
- 12V Power Supply
Useful Information
Power Supply : 12V 2A (PN: PG1780)
USB Connection : Used for firmware updates only. Not required for customer use.

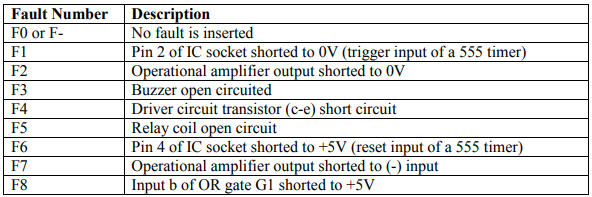

Switched Faults
